CNC Machining
Precision machining,
built to spec.
From prototypes to production components, manufacture complex parts with engineering-grade precision.
No public prices: every part is quoted by an engineer from your model and drawing.
- 7 materialsMetals and engineering plastics
- ISO 2768-mFiner on request, from your drawing
- 400 × 300 × 150 mmLargest part, 3-axis milled
- From 5 daysWorking days, to dispatch
Materials
Metals and engineering plastics
Stock we machine regularly. Need something else? Choose “Other” in the request and tell us what the part has to do.
7 materials
Metals

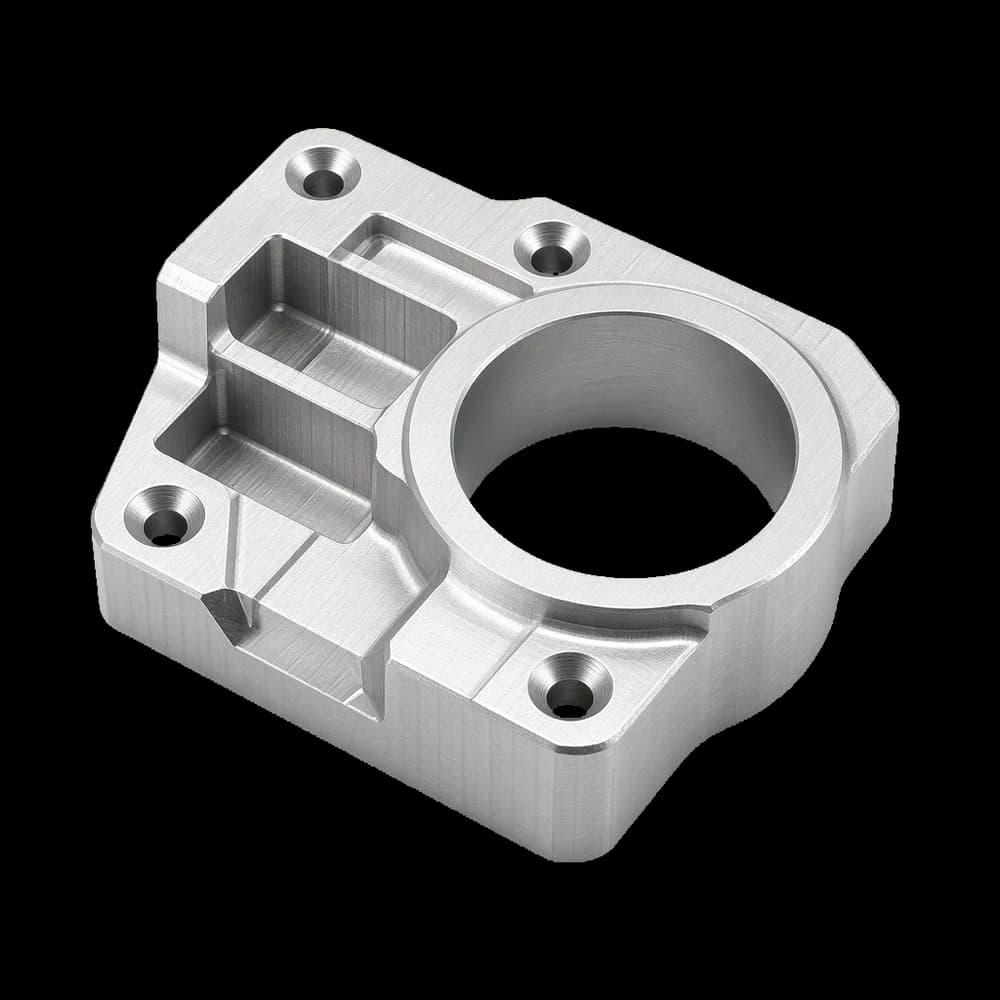

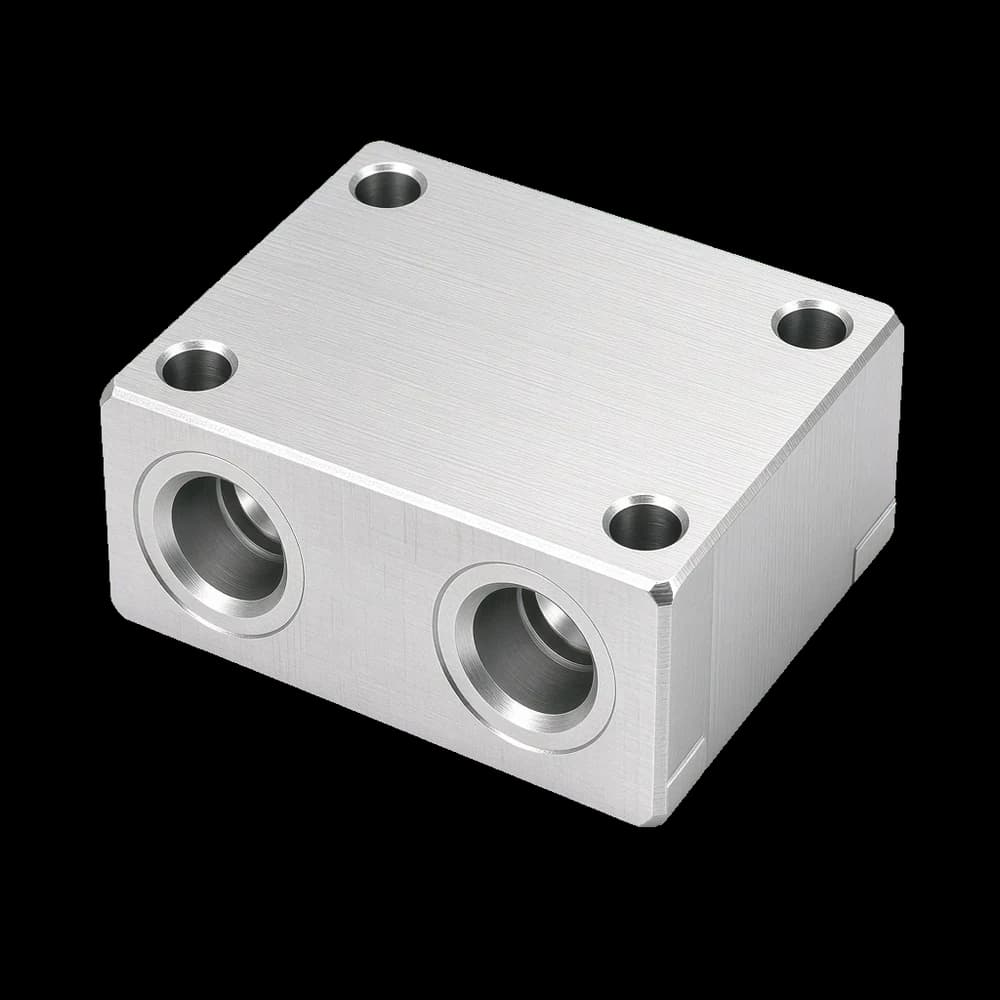

Aluminium 6061-T6
Light, strong and quick to machine
- Density
- 2.7 g/cm³
Aluminium 7075-T6
High-strength aluminium for load-bearing parts
- Density
- 2.81 g/cm³

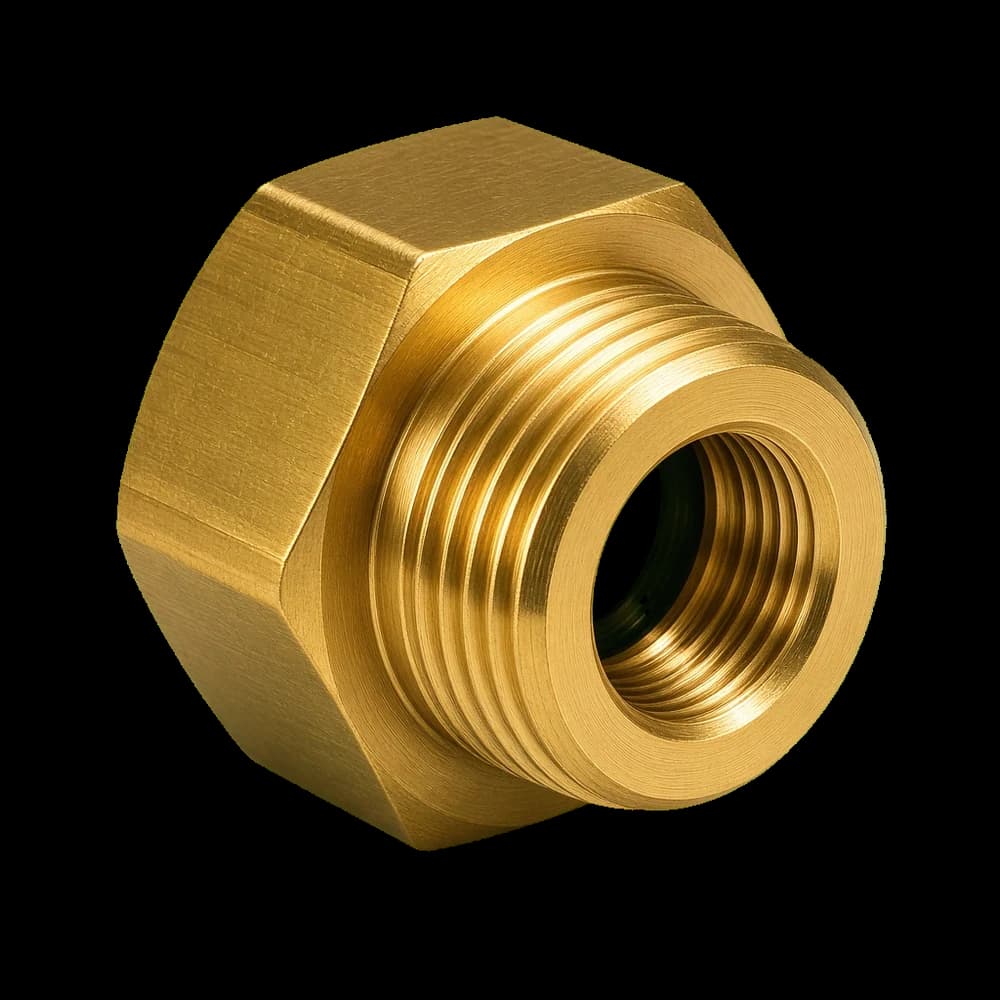

Brass C360
Fittings, bushings and decorative parts
- Density
- 8.5 g/cm³

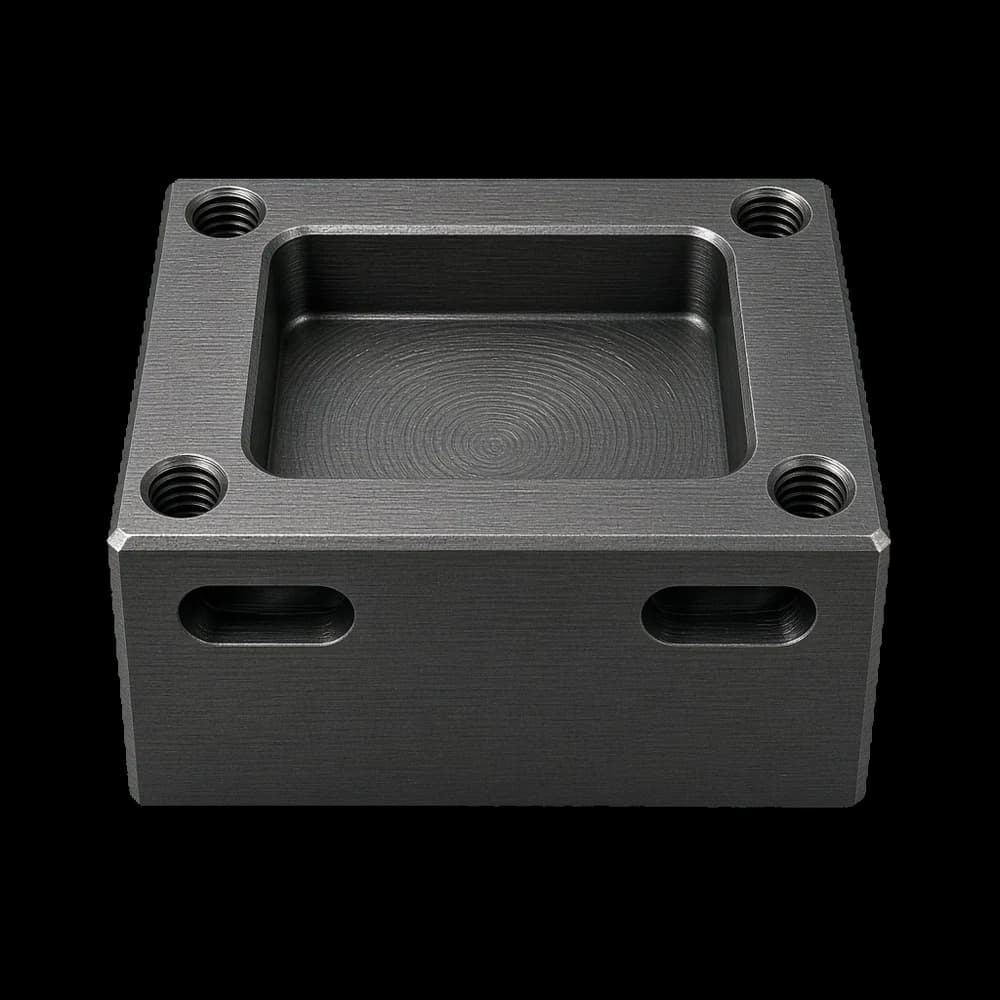

Mild steel 1018
Strong, weldable, low-cost steel parts
- Density
- 7.87 g/cm³

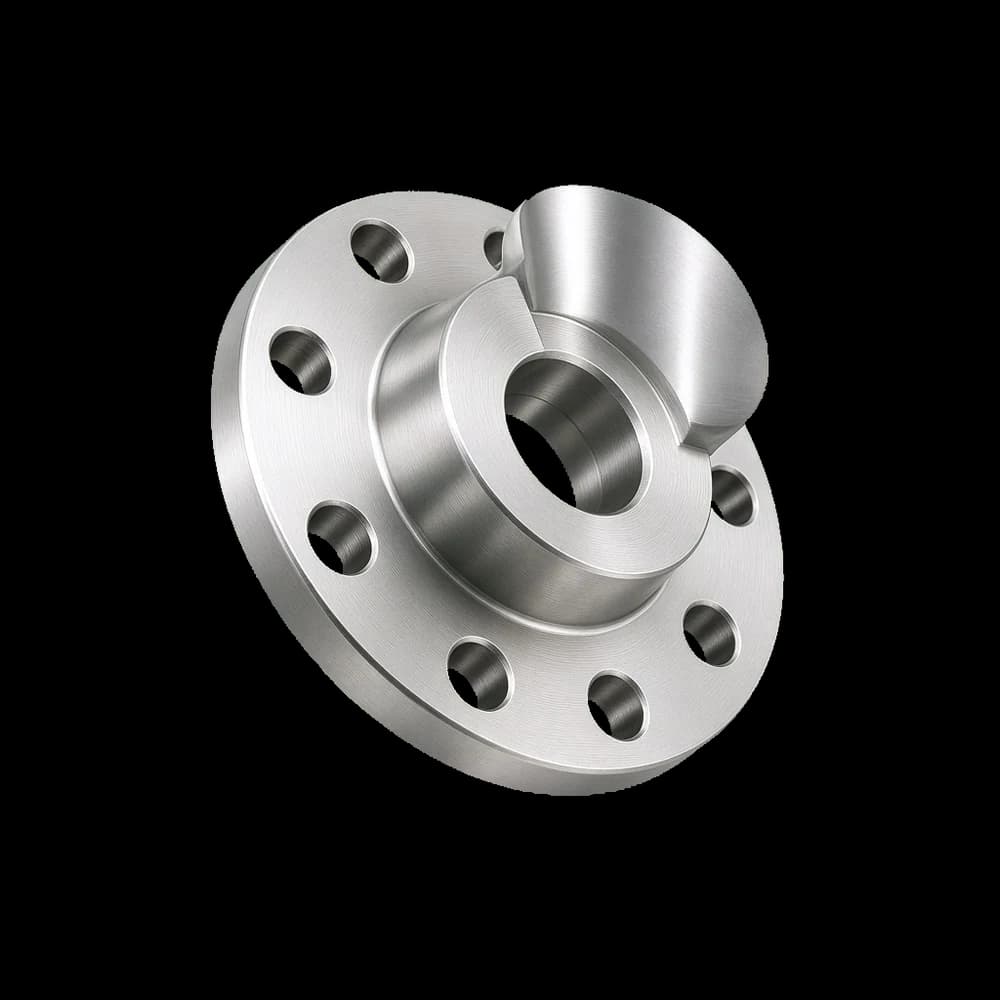

Stainless steel 304
Corrosion-resistant parts for food and outdoors
- Density
- 8 g/cm³
Engineering plastics
Capabilities
CNC capabilities
The envelope, the materials and what we hold to. Outside it? Send the drawing and ask.
Machining
The envelope a part has to fit.
- Process
- CNC machining, 3-axis
- Work envelope
- 400 × 300 × 150 mm
- Thinnest wall
- 0.8 mm
- Holes & threads
- Drilled and tapped to your drawing
- Lead time
- 8 working days, express 5
Accuracy
What the drawing can ask for.
- General tolerance
- ISO 2768-m · ISO 2768-f · Tighter than ISO 2768-f
- Surface roughness
- Ra 3.2 µm · Ra 1.6 µm · Ra 0.8 µm
- Tighter than that
- Call it out on the drawing and an engineer will confirm it
- Inspection
- Dimensional report on request
Materials
Stock we cut from.
- Metals
- Aluminium 6061-T6 · Aluminium 7075-T6 · Brass C360 · Mild steel 1018 · Stainless steel 304
- Engineering plastics

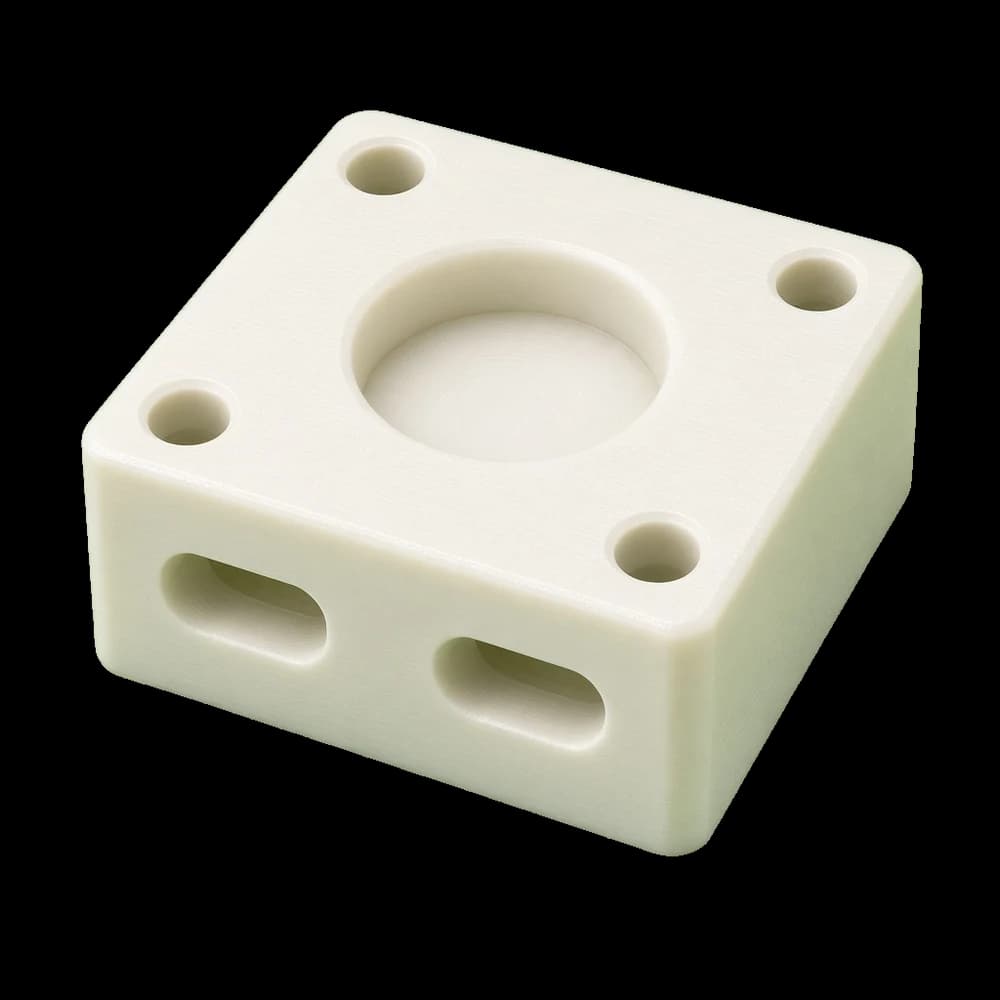

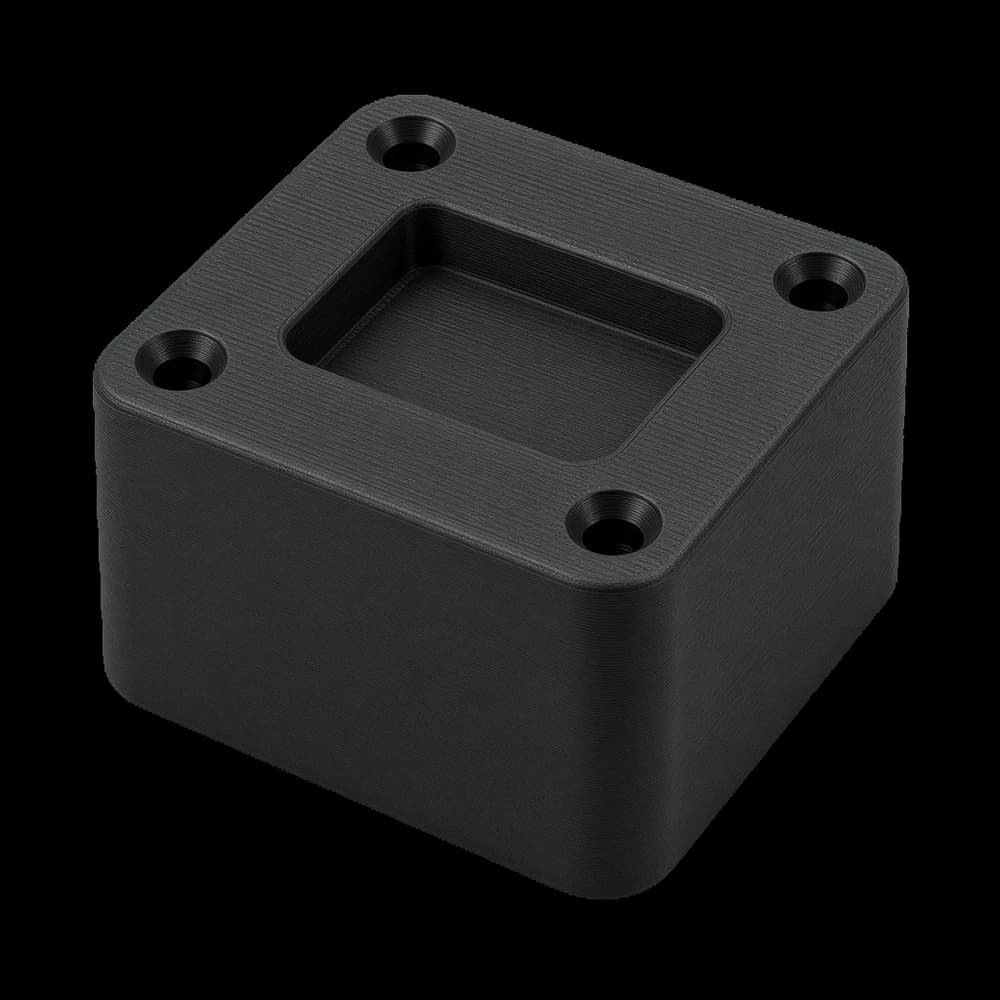

- Acetal (POM-C) · Nylon 6
Files
What to send, and what it is read for.
- Design file
- STEP, IGES or BREP — the solid the part is quoted from
- Technical drawing
- PDF, for tolerances, threads and finishes
- Also accepted
- DXF and STL, with a drawing alongside
- Read from them
- Stock size, machined faces, holes and tapped threads
Design review
Designed for the way it’s made.
Use this checklist before you send your drawing. Our engineers review the details that affect fit, finish and manufacturing.
01Upload a STEP file
Machined parts are quoted from the exact solid, so send STEP, IGES or BREP where you can. A mesh has no true circles or flat faces to measure — the same file can still be 3D printed.
02Holes that can be drilled
Holes under 0.8 mm can't be drilled. Holes deeper than ten times their diameter are gun-drilling, and go to an engineer.
03Round internal corners
A round cutter leaves a radius in every internal corner. Square corners are pointed out, and corners tighter than 0.75 mm are flagged.
04Reachable features
Pockets deeper than eight cutter diameters, undercuts and freeform surfaces are flagged, and so is a part that needs four setups or more.
05Tolerances and threads
ISO 2768-m applies when your drawing says nothing. Anything tighter, and any tapped thread, is checked by an engineer and quoted.
06Send the drawing too
Add a PDF or DXF drawing with your STEP and its tolerances are the ones we make to.
How it works
From CAD to machined part
- 01
Upload CAD
A STEP model, with a PDF or DXF drawing for tolerances, threads and finishes.
- 02
Specify
Material, quantity, tolerance, surface finish and when you need the parts.
- 03
Engineering review
An engineer checks manufacturability and asks about anything unclear.
- 04
Quotation
Price, lead time and terms — accept it online, or ask for changes.
- 05
Machining & inspection
Made to your drawing and inspected before packing.
- 06
Delivery
Shipped with tracking, a GST invoice and any reports you asked for.
FAQ
Questions, answered
Why isn't there an instant price?
Which files should I send?
What tolerances can you hold?
Can you sign an NDA?
Do you tap threads?
Your next project
Have a part to machine?
Upload your CAD and drawing — our engineers review it and reply with a quotation.
